VFFS PARTICLE FILLER MACHINE
Vertical form-fill-seal machine for particulate products. Compatible with polyethylene and laminated films.
Technical Specifications:
- Filling Capacity: 20GM to 1000GM
- Filling Speed: 30 pouches/min (depending on size)
- Hopper Capacity: 40 KG approx (depending on product)
- Filling Accuracy: ±2%
- Power Supply: 440V/3 PHASE
- Compressed Air: 6 CFM 4KG/CM2
- HMI: Delta Make
- Material Compatibility: Polyethylene, Laminated Films
- Machine Dimensions: 2320mm x 1740mm x 2650mm
- Machine Weight: Approx 700.00 KG
.jpg)
VFFS POWDER FILLING MACHINE (AUGER FILLER)
Heavy-duty VFFS machine with auger filler system. MS body powder coated with SS-304 contact parts.
Technical Specifications:
- Filling Capacity: 20GM - 5000GM
- Filling Speed: 30 pouch/min as per weight
- Hopper Capacity: 40 KG approx (depending on product)
- Filling Accuracy: ±2%
- Machine Construction: MS Body Powder Coated (Contact parts SS-304)
- Power Supply: 440V/3 PHASE
- Material Compatibility: Any heat sealable laminate film
- HMI: Delta Make
- Machine Dimensions: 1200mm x 1700mm x 2400mm
- Machine Weight: Approx 700.00 KG
.webp)
SEMI AUTOMATIC POWDER FILLING MACHINE (AUGER FILLER)
MS body powder coated with SS-304 contact parts. Equipped with Delta make servo motor and load cell controller.
Technical Specifications:
- Filling Capacity: 20 GM - 1.0 KG
- Filling Speed: 5-20 pouch/min as per weight
- Hopper Capacity: 40 KG as per product
- Filling Accuracy: ±2%
- Machine Construction: MS Body Powder Coated (Contact parts SS-304)
- Power Supply: 230V/50 Hz Single Phase/3Phase
- Voltage: 2000 W
- Servo Motor: 1.5 KW Delta Kinko/0.5 HP
- Load Cell Controller: Delta Make
- Machine Weight: Approx 250.00 KG
.webp)
TABLE TOP POWDER FILLING MACHINE (AUGER FILLER)
Compact SS-304 construction table-top auger filler with servo motor. Perfect for small-scale operations.
Technical Specifications:
- Filling Capacity: 10 GM - 1.0 KG
- Filling Speed: 5-20 pouch/min as per weight
- Hopper Capacity: 8 KG as per product
- Filling Accuracy: ±2%
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz Single Phase/3Phase
- Voltage: 2000 W
- Servo Motor: 1.5 KW/0.5 HP
- Machine Weight: Approx 85.00 KG

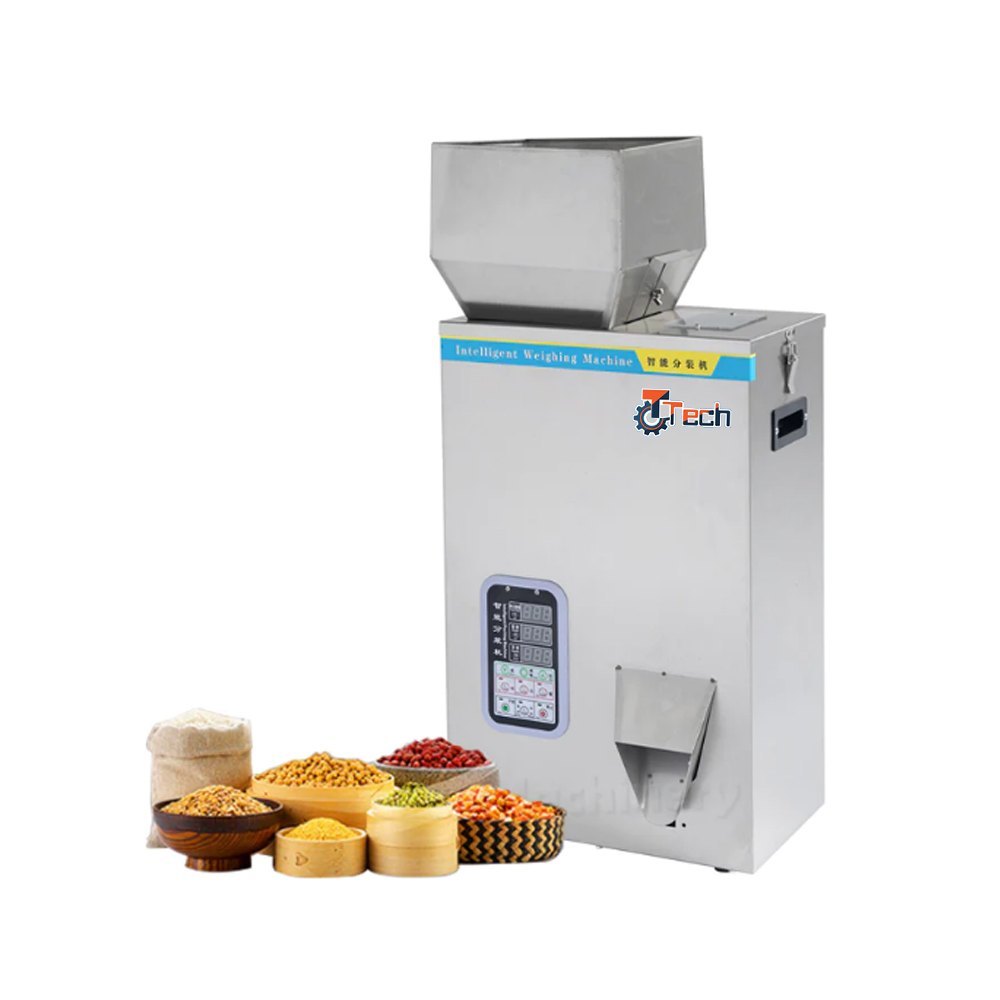

GRANULES WEIGHING MACHINE (MODEL: 500GM)
SS-304 mirror construction weighing machine for precise granule packaging.
Technical Specifications:
- Filling Capacity: 10 G - 500 GRAM
- Filling Speed: 10-12 pouch/min as per weight
- Hopper Capacity: 7 KG as per product
- Filling Accuracy: ±2%
- Machine Construction: SS-304 (Mirror)
- Power Supply: 230V/50 Hz
- Voltage: 300 W
- Machine Weight: Approx 11.00 KG
GRANULES WEIGHING MACHINE (MODEL: 999GM)
Higher capacity granules weighing machine with SS-304 mirror construction.
Technical Specifications:
- Filling Capacity: 10 G - 999 GRAM
- Filling Speed: 10-12 pouch/min as per weight
- Hopper Capacity: 12 KG as per product
- Filling Accuracy: ±0.5%
- Machine Construction: SS-304 (Mirror)
- Power Supply: 230V/50 Hz
- Voltage: 300 W
- Machine Weight: Approx 20.00 KG
GRANULES WEIGHING MACHINE (MODEL: 3KG)
High-capacity granules weighing machine for large volume packaging applications.
Technical Specifications:
- Filling Capacity: 10 G - 3000 GRAM
- Filling Speed: 10-12 pouch/min as per weight
- Hopper Capacity: 25 KG as per product
- Filling Accuracy: ±0.5%
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz
- Voltage: 300 W
- Machine Weight: Approx 29.00 KG
GRANULES WEIGHING MACHINE (MODEL: 5KG)
Maximum capacity granules weighing machine for industrial-scale packaging operations.
Technical Specifications:
- Filling Capacity: 10 G - 5000 GRAM
- Filling Speed: 10-12 pouch/min as per weight
- Hopper Capacity: 25 KG as per product
- Filling Accuracy: ±0.5%
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz
- Voltage: 300 W
- Machine Weight: Approx 35.00 KG
SEMI AUTOMATIC VERTICAL BAND SEALING MACHINE WITH NITROGEN FLUSHING
Advanced sealing machine with nitrogen flushing capability for extended product freshness.
Technical Specifications:
- Max Seal Length: UNLIMITED
- Seal Width: 10-12 MM
- Heating Temperature: 0-300°C
- Machine Speed: 7-12 pouch/min
- Air Pressure: Max pressure 9.9 kgf/Cm2
- Conveyor Weight Capacity: 3.0 KG
- Machine Construction: SS-304
- Power Supply: 230V/50Hz
- Voltage: 200-300 W
- Machine Weight: Approx 27.00 KG

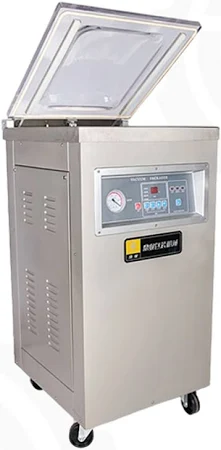

VACUUM CHAMBER SEALING MACHINE - 2D
Professional vacuum chamber sealing machine with SS-304 construction for reliable performance.
Technical Specifications:
- Max Seal Length: 400 MM
- Max Seal Thickness: 2 X 0.15 MM
- Seal Width: 10 MM
- Sealing Speed: 07-08 pouch/min (Vacuum & Sealing)
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz Single Phase
- Voltage: 380 W
- Machine Weight: Approx 70.00 KG

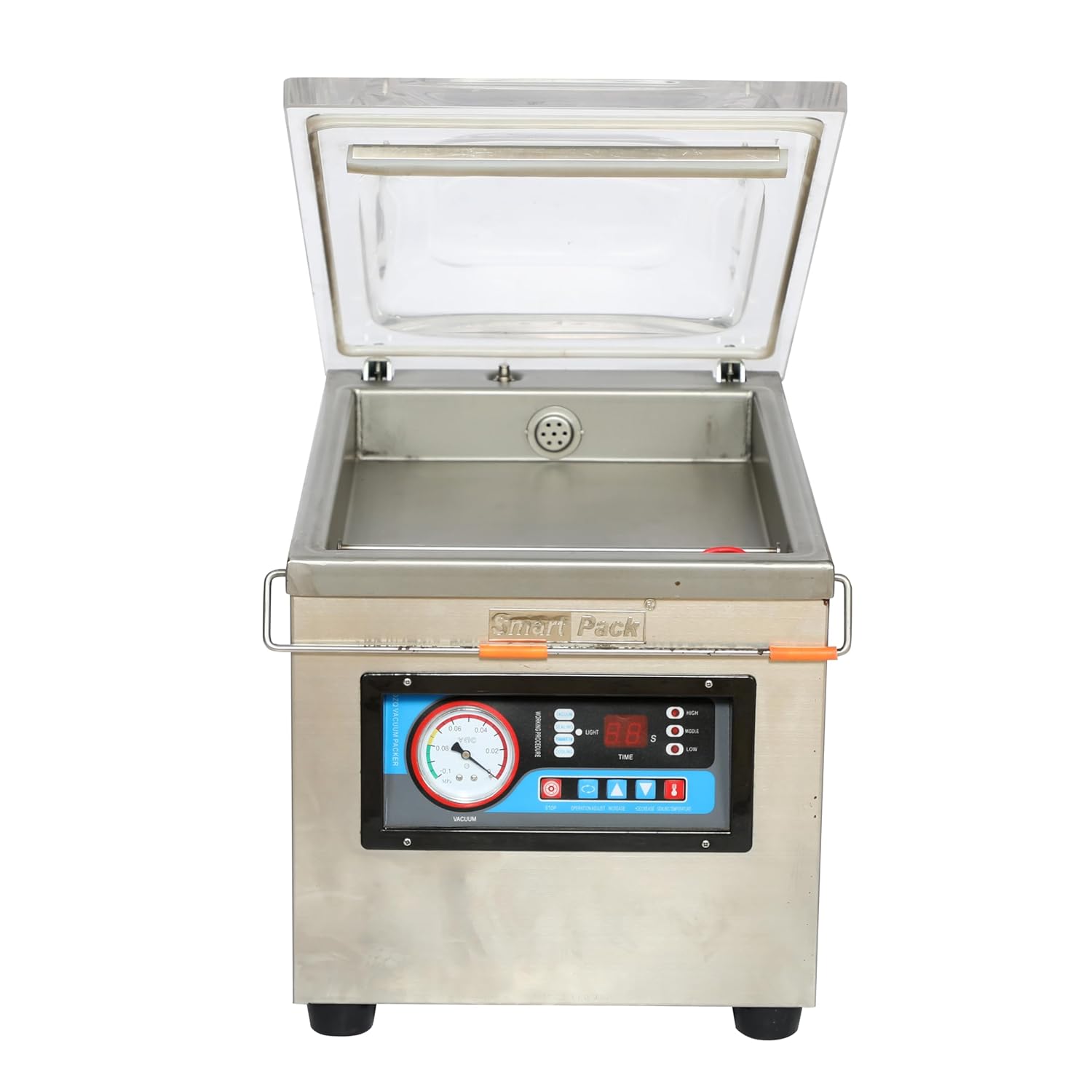

TABLE TOP VACUUM CHAMBER SEALING MACHINE
Compact table-top vacuum chamber sealer suitable for small-scale operations.
Technical Specifications:
- Max Seal Length: 250 MM
- Max Seal Thickness: 2 X 0.15 MM
- Seal Width: 8 MM
- Sealing Speed: 02-04 pouch/min (Vacuum & Sealing)
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz
- Voltage: 260 W
- Machine Weight: Approx 20.00 KG
MANUAL INDUCTION SEALING MACHINE
Handheld induction sealing machine for bottle sealing applications.
Technical Specifications:
- Max Sealing Diameter: Ø 20MM - Ø 80MM
- Operation Way: Handheld
- Machine Construction: Plastic
- Working Temperature: 10~400°C
- Sealing Speed: 09-10 bottle/min
- Power Supply: 230V/50 Hz
- Voltage: 200 W
- Machine Weight: Approx 2.00 KG

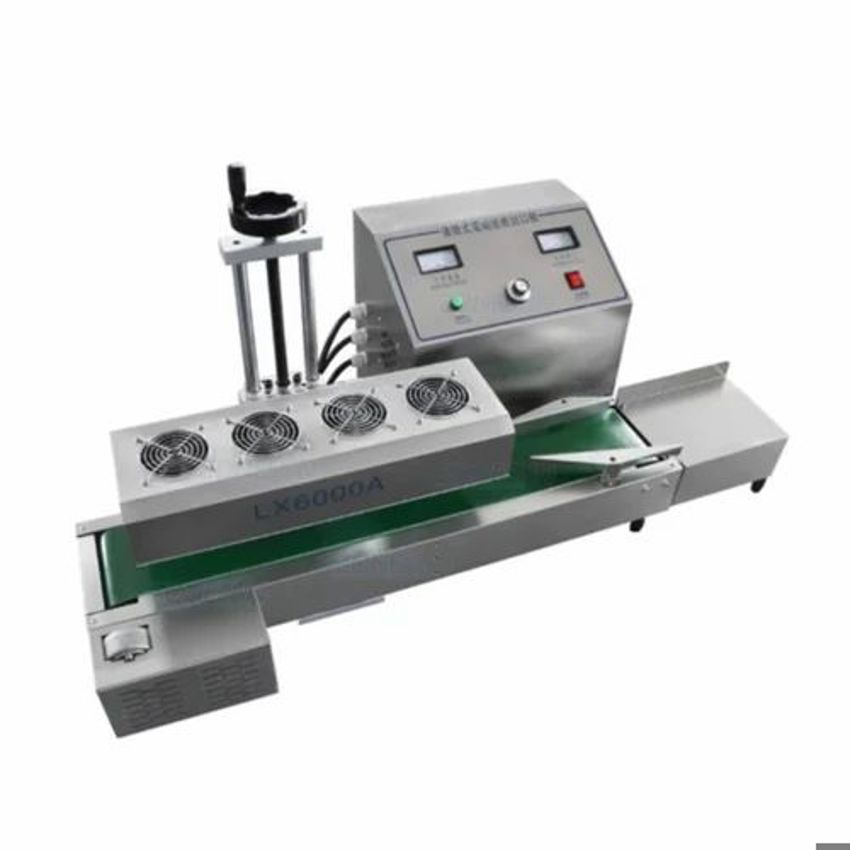

SEMI AUTOMATIC INDUCTION SEALING MACHINE
SS-304 constructed induction sealing machine with conveyor system for higher productivity.
Technical Specifications:
- Max Sealing Diameter: Ø 20 MM - Ø 130 MM
- Sealing Speed: 18-20 bottle/min
- Bottle Height: 20MM - 280 MM
- Conveyor Weight Capacity: 3.0 KG
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz
- Voltage: 300 W
- Machine Weight: Approx 22.00 KG

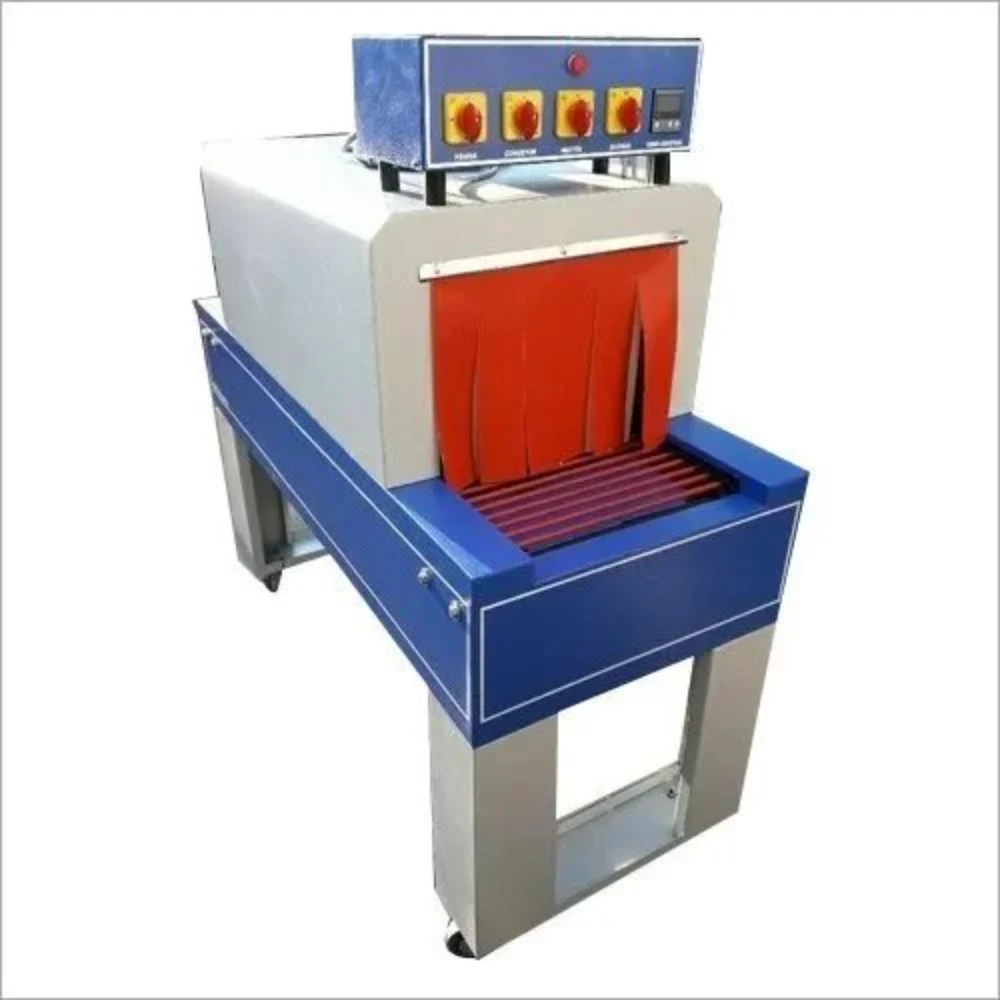

SHRINK WRAPPING TUNNEL MACHINE
High-power shrink tunnel machine with adjustable conveyor speed for various packaging applications.
Technical Specifications:
- Model: Shrink Tunnel
- Voltage: 220v 50-60Hz
- Power: 7.5KW
- Conveyor Speed: 0-10m/MIN
- Machine Construction: Mild Steel (Powder Coated)
- Tunnel Size (L*W*H): 800*260*140mm
- Conveyor Loading: 5KG
- Machine Size (L*W*H): 1120*450*580mm

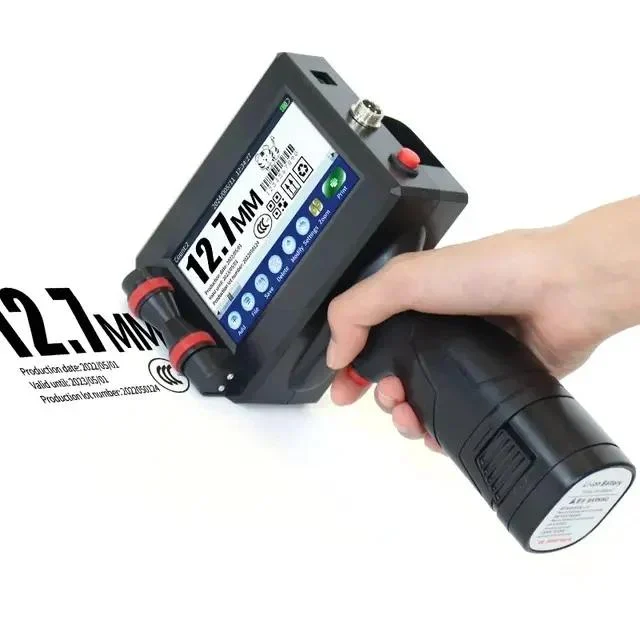

HANDHELD INKJET BATCH CODING MACHINE
Portable battery-operated coding machine with thermal foamable head and USB compatibility.
Technical Specifications:
- Nozzle Type: Thermal Foamable Head
- Operation Way: Handheld/Battery Operated
- Power Supply: 230V/50 Hz
- Voltage: 50 W
- Machine Construction: Plastic
- Printing Accuracy: 150 DPI/300 DPI
- Print Height: Minimum-1MM/Maximum 12.7MM
- Machine Weight: 0.500 KG
- Cartridge: HP Make
- USB Compatible: Yes
- QR Code: Yes

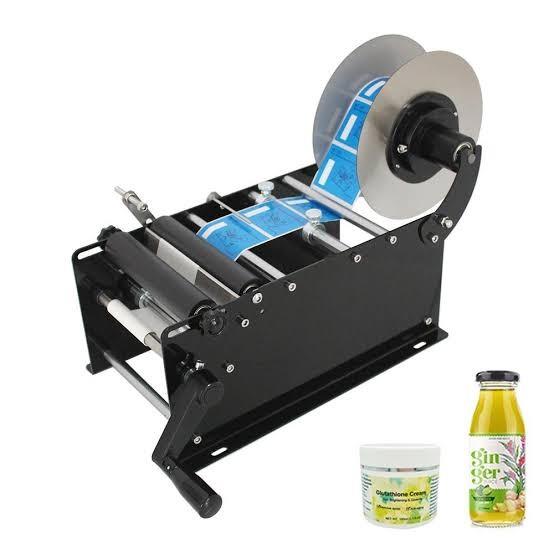

MANUAL ROUND BOTTLE LABELLING MACHINE
Manual labelling machine for round bottles with powder coated mild steel construction.
Technical Specifications:
- Label Core Diameter: 75 MM
- Bottle Diameter: 15-120 MM
- Label Speed: 10-12 bottle/min
- Machine Construction: Mild Steel (Powder Coated)
- Bottle Weight Capacity: 1 KG (Empty Bottle)
- Label Width: 10-110 MM
- Machine Weight: 6.00 KG

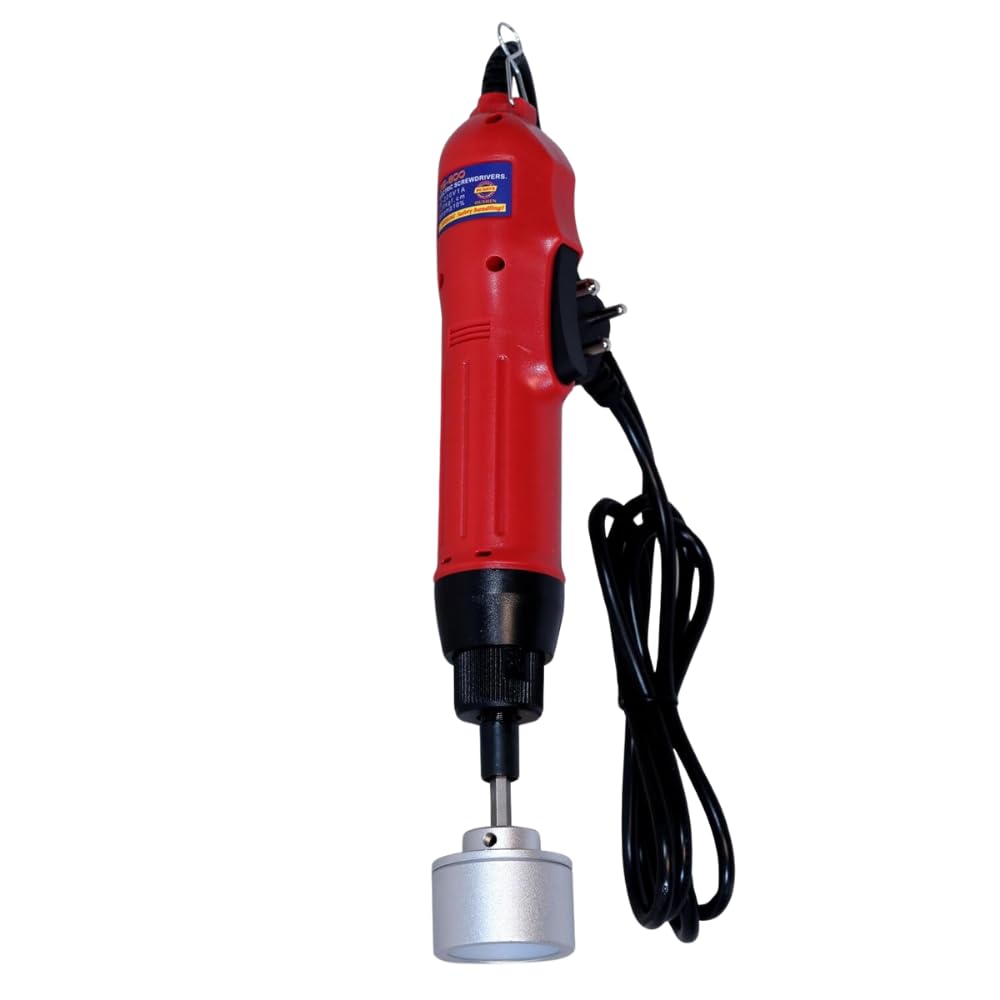

HANDHELD BOTTLE CAPPING MACHINE
Lightweight handheld bottle capping machine for small to medium bottle cap sizes.
Technical Specifications:
- Capping Size: 01 MM TO 40 MM
- Operation Way: Handheld
- Power Supply: 230V/50 Hz
- Voltage: 50 W
- Machine Construction: Plastic
- Capping Speed: 12-15 bottle/min
- Machine Weight: 0.500 KG

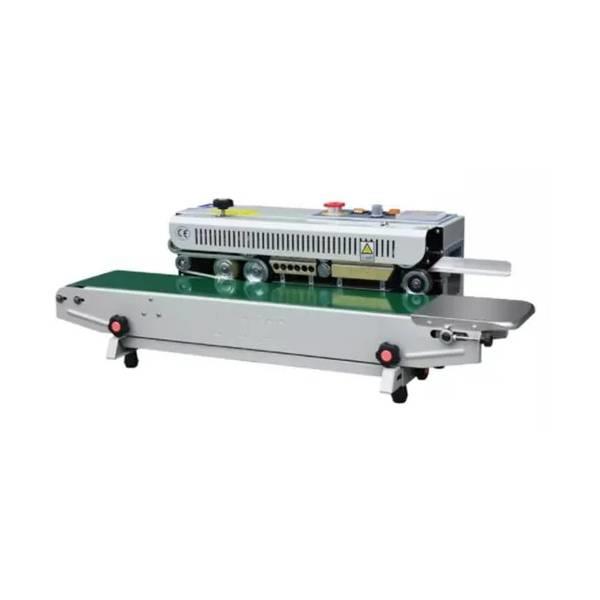

HORIZONTAL BAND SEALING MACHINE
SS-304 constructed horizontal band sealing machine with unlimited seal length capability.
Technical Specifications:
- Max Seal Length: UNLIMITED
- Seal Width: 10-12 MM
- Heating Temperature: 0-300°C
- Machine Construction: SS-304
- Machine Speed: 7-8 pouch/min
- Conveyor Weight Capacity: 3.0KG
- Power Supply: 230V/50Hz
- Voltage: 300 W
- Machine Weight: Approx 20.00 KG
orginal.jpg)

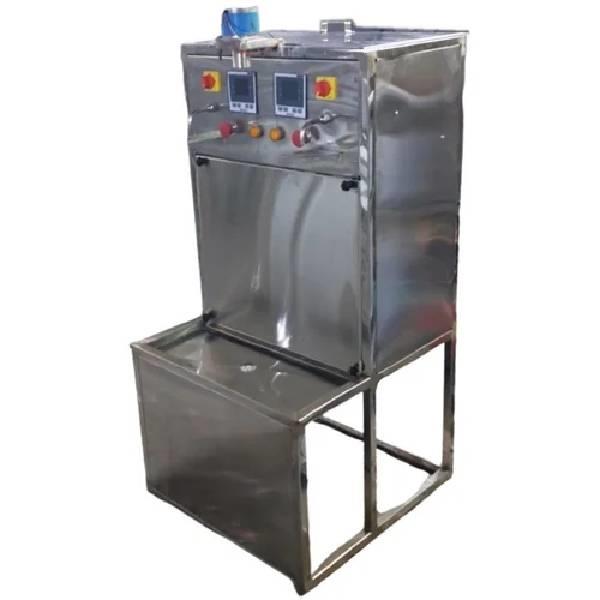

MANUAL LIQUID FILLING MACHINE (TWO HEAD)
SS-304 constructed two-head liquid filling machine with manual/auto control modes.
Technical Specifications:
- Filling Capacity: 10 ML - 3500 ML
- Filling Speed: 5-6 bottle/min
- Filling Accuracy: ±0.5%
- Control Mode: Manual/Auto
- Machine Construction: SS-304
- Power Supply: 230V/50 Hz
- Voltage: 200 W
- Machine Weight: Approx 8.00 KG

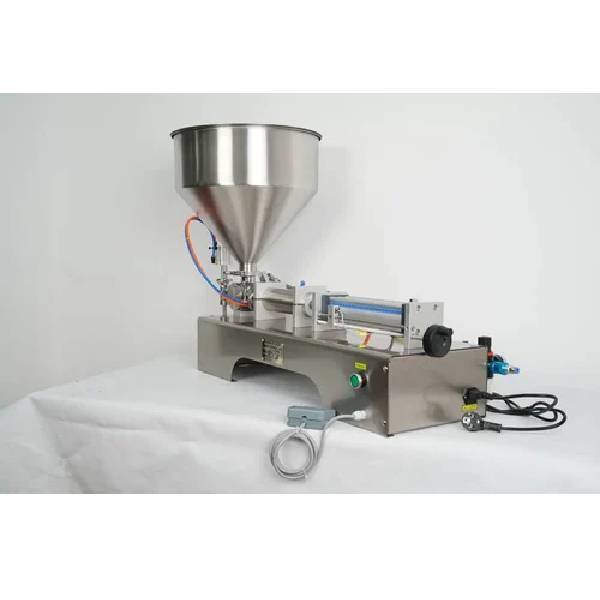

SEMI AUTOMATIC PISTON PASTE FILLING MACHINE
SS-304 constructed piston paste filling machine with manual/auto control for various capacities.
Technical Specifications:
- Filling Range: 30 ML - 1000 ML (Multiple Models)
- Air Pressure: 0.4 - 0.6 MPA
- Filling Speed: 07-09 bottles/min
- Filling Accuracy: ±2%
- Hopper Capacity: 25-30 KG as per product
- Machine Construction: SS-304
- Control Mode: Manual/Auto
- Power Supply: 230V/50 Hz
- Voltage: 300 W
- Machine Weight: Approx 21-49 KG
